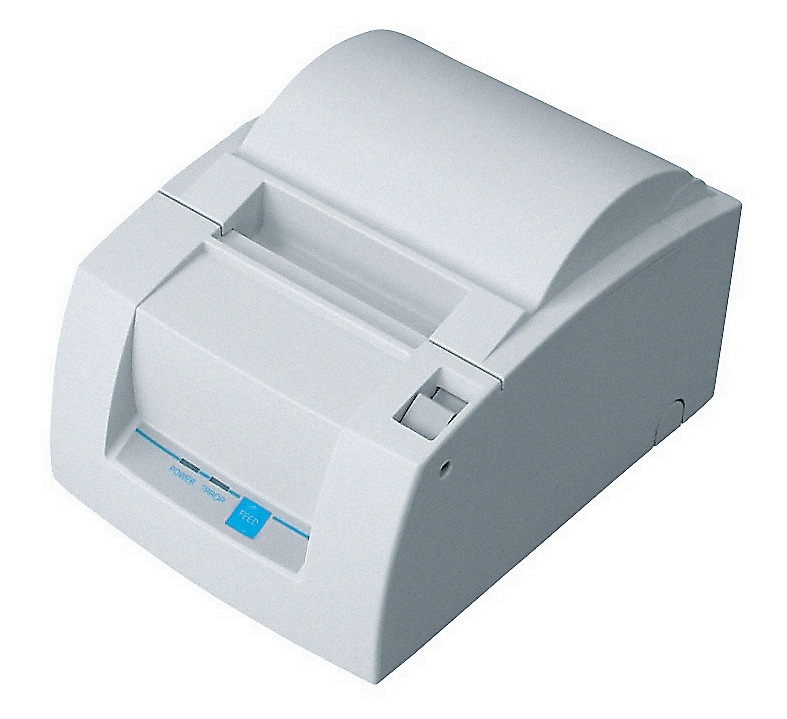

Datecs EP-300
Prospekt - brošura

Funkcije
  • Line thermal dot print method
  • Cash drawer interface: 1 cash drawers are supported
  • Auto cutter: ACS-531 (039002)

Specifikacija
  • Print width: 72 mm / 576 dots, (52 mm / 416 dots)
  • Dot density: 8 x 8 dots/mm (203 dpi)
  • Print speed: Max speed 100 mm/s
  • Number of print columns ( ) shows the value with 58 mm wide paper: Font A: 47 (34), Font B: 63 (46)
  • Character size: Font A: 1.50 x 3.00 mm, Font B: 1.13 x 2.13 mm
  • Character type: CP 437/850/860/852/857/775/856/866/737/865, Lithuania, Poland, Latvia, PC/1252/1250/1254/1257/1251/1253/1255
  • Types of bar code: UPC-A/E, PDF417, EAN 13/8 columns, ITF, CODE 39, CODE 128, CODABAR, CODE 93
  • Line spacing: 4.23 mm (1/6 inch)
  • Paper roll: Thermal paper roll:80mm/58mmx 83 mm
  • Paper thickness: 65-75 µm
  • Interfacing: Serial (RS-232C compliant), USB
  • Input buffer: 16K bytes
  • Power consumption: Approx. 70 W (in normal printing) AC adapter: Rated input: 100 to 240V 150 VA, Rated output: DC 24 V, 2A
  • Adapter: 32AD-U 32AD-E
  • Operating temperature and humidity: 5 to 40°C, 35 to 85% RH (No condensation)
  • Storage temperature and humidity: -20 to 60°C, 10 to 90% RH (No condensation)
  • Print head life: 100 km, 1 x 108 pulses (At normal temperature/humidity with commended paper used)
  • Auto cutter life: 1 million cuts (At normal temperature/humidity with recommended paper used)

Dimenzije
  • W x L x H - 145 x 195 x 121 mm
  • Weight - 1.2 kg.
  • Power - DC 24V / AC 100/240V

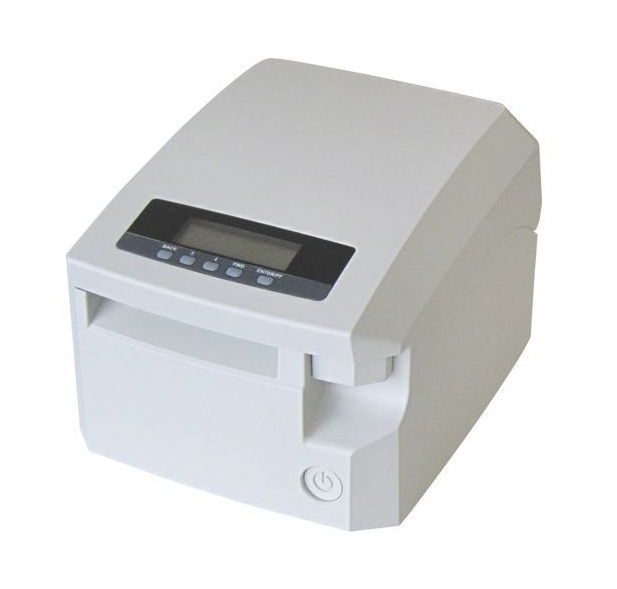

Datecs EP-700

Funkcije
  • Printing Method: Line Thermal Dot Printing
  • Print width: 72 mm paper / 576 dots
  • Dot Density: 8 x 8 dots/mm (203dpi x 203 dpi)
  • Print Speed: Max 220 mm/sec (1760 dots line/sec)
  • Characters per line: Font A - C: 48 characters/line, 36 colomns, 12 x 24, Font B - D: 64 characters/line, 48 colomns, 9 x 16
  • Recommended paper: Thermal paper Roll: 80 mm or 58 mm / Ф to max 102 mm, thickness 65-85 µm
  • Paper Loading: Easy paper lading method

Specifikacija
  • Interfaces: RS 232C, USB - type v. 1.1, LAN – 100 Mbps(100BASE-TX)
  • Emulation: ESC/POS
  • Linear Barcode: EAN 8, EAN 13, UPC-A, UPC-E, Codabar, Code 39, Code 128
  • 2-Dimensional Barcode: PDF 417, QR code
  • Input Buffer: 36 864 b (Option 131 072b)
  • Operating temperature +5°C to +40°C
  • Operating humidity 35 to 85% RH (Free of dew condensation)
  • Storage temperature -20°C to +60°C
  • Storage humidity 10 to 90% RH (Free of dew condensation)
  • Reliability Printer head life: 150 km printed paper
  • Reliability Auto cutter life: 2 million pulses

Dimenzije
  • W x L x H - 147 x 207 x 147 mm
  • Weight - 2 kg.
  • Power - ~100 - 240V, 50/60Hz

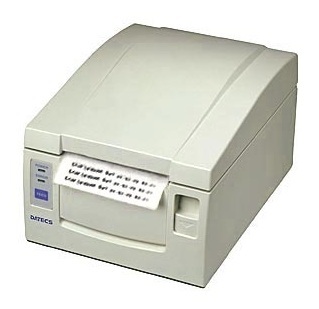

Datecs EP-1000
Korisničko uputstvo

Specifikacija
  • Line thermal dot printing system
  • Printing width: 76 mm/608 dots or 54 mm/432 dots
  • Dot density: 8 dots/mm / 203 dpi (horizontal, vertical)
  • Printing speed: Up to 100 mm/sec (800 dots line/sec)
  • Printing columns
    48/36 columns (Font A) 12 x 24
    64/48 columns (Font B) 9 x 16
  • Code pages: International code page
  • Full set loadable fonts
  • Free loadable logo
  • Bar codes: Code 39, Code 93, Code 128, Codebar; EAN 8, EAN 13, EAN 128, Interleved 2 of 5, UPC - A, UPC - E
  • Interface serial (RS 232 C)
  • Input buffer 64 KB
  • Emulation ECS / POS
  • 1 Drawer Kick-Out Connector
  • Automatic Label Cutter
  • Easy paper loading method
  • Operating temperature 5° C to 40° C 35 - 85% RH (Free of dew condensation)
  • Storage temperature -20° C to 60° C 10 - 90% RH (Free of dew condensation)
  • Reliability 70 km of printed paper

Dimenzije
  • W x L x H - 145 x 156 x 190 mm
  • Weight - 2 kg.
  • Power - AC 100V-240V, DC 24V
